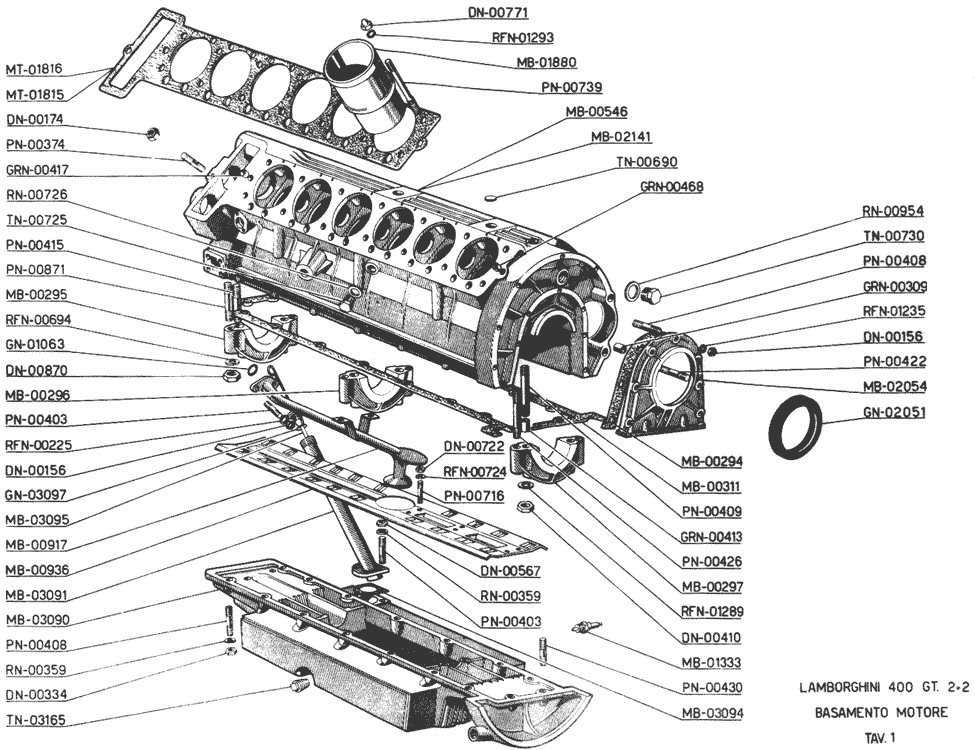

| Item # | Lamnborghini Part Number |
Lamborghini |
Item description | Qty Req* |
| 1 | DN-00771 |
008200771 |
M10x1 Cap Nut
|
28 req |
| 2 | RFN-01293 |
008411101 |
Washer 11.5x21x1.2
|
28 req |
| 3 | PN-00739 |
008300739 |
Head Fastening Stud M10x100
|
28 req |
| 4 | MT-01816 |
001101816 |
Cylinder Head Gasket
|
1 req |
| 5 | MB-01880 |
001801880 | Cylinder Liner | 12 req |
| 6 | TN-00730 |
008932202 |
Plug 22mm
|
1 req |
| 7 | RN-00954 |
008602002 | Gasket | 1 req |
| 8 | TN-00690 |
008932401 | Plug, casting hole | 2 req |
| 9 | MT-01815 |
001101815 |
Cylinder Head Gasket Right Side
|
1 req |
| 10 | DN-00156 |
008208404 |
Nut |
7 req |
| 11 | RFN-01235 |
001410402 |
Washer |
7 req |
| 12 | 008300608 |
Stud M6x20 Uni 5911 8g/Zd
|
3 req | |
| 13 | GN-02051 |
001829009 |
Seal, lip 100x120x12
|
1 req |
| 14 | MB-02054 |
001802054 |
Rear Crankshaft Cover
|
1 req |
| 15 | MB-00294 |
001800294 |
Gasket, Ccase Rr CoverSeal
|
1 req |
| 16 | GRN-00468 |
008851101 |
Bushing 8.5x11x14 Mm
|
2 req |
| 17 | MB-00546 |
001808546 |
Block, complete machined |
1 req |
| 18 | GRN-00417 |
008850804 |
Pin, Reference 8x14 C40
|
2 req |
| 19 | DN-00174 |
008200884 |
Nut |
2 req |
| 20 | PN-00734 |
008300415 |
Stud |
2 req |
| 21 | PN-00408 |
008300608 |
Stud M6x20 Uni 5911 8g/Zd
|
2 req |
| 22 | 008300814 |
Stud M8x18 Uni 5914 8g Zd
|
2 req | |
| 23 | PN-00430 |
008300411 |
Stud |
2 req |
| 24 | GRN-00309 |
008650805 |
Pin |
2 req |
| 25 | DN-00156 |
008200604 |
M6 Uni 5588/8g/ZdNut
|
2 req |
| 26 | RFN-00225 |
008410603 |
Washer D.6.4 Uni 1751/Zd
|
2 req |
| 27 | PN-00403 |
008300610 |
Stud 6x1x16 8g Uni5911 Z.
|
2 req |
| 28 | MB-03095 |
001804836 |
Dipstick |
1 req |
| 29 | GN-03097 |
008800701 |
O-ring |
1 req |
| 30 | PN-00871 |
008300818 |
Stud M8x30 Uni 5911 8g Zd
|
2 req |
| 31 | PN-00415 |
008301213 |
Special Stud M12x98
|
2 req |
| 32 | MB-00311 |
001800311 |
Oil Sump Seal
|
1 req |
| 33 | 008301214 |
Special Stud M12x94
|
12 req | |
| 34 | 008300817 |
Stud M8x1x60 Uni 5919 10k
|
12 req | |
| 35 | MB-00297 |
001800297 |
Cap, bearing |
1 req |
| 36 | RN-00726 |
008401502 |
Copper Washer 15x28x2
|
2 req |
| 37 | TN-00725 |
008931403 |
Bronze Plug
|
2 req |
| 38 | MB-00296 |
001800296 |
Cap, bearing |
5 req |
| 39 | MB-00295 |
001800295 |
Cap, bearing |
1 req |
| 40 | RFN-00694 | 008410605 |
Washer, wave D 6
|
14 req |
| 41 | DN-00870 | 008200805 |
M8x1x8 8g/B Nut
|
14 req |
| 42 | GRN-00413 |
008851501 |
Dowel 15x12.5x14
|
14 req |
| 43 | MB-00917 |
001804497 |
Pipe, oil suction |
1 req |
| 44 | GN-01063 |
008802901 |
O-ring |
1 req |
| 45 | MB-00936 |
Oil Sump Bulkhead
|
1 req | |
| 46 | RFN-01289 |
008411302 |
Washer 13x24x1.2 Din137/B C72
|
14 req |
| 47 | DN-00410 |
008201210 |
Nut, 12x1,5x12 gr8 |
14 req |
| 51 | MB-01333 |
001801333 |
Oil & Coolant Temp |
1 req |
| 52 | PN-00408 | 008300608 |
Stud M6x20 Uni 5911 8g/Zd
|
16 req |
| 53 | RN-00359 |
008400606 |
Washer 12.5x6.4x1.6 Uni 6592/5
|
18 req |
| 54 | DN-00334 |
008200605 |
M6 Ncm 70 Urama Simmon
|
18 req |
| 55 | MB-03090 |
001813126 |
Oil Sump
|
1 req |
| 56 | TN-03165 |
086301141A |
Magnetic Plug 22x1.5
|
1 req |
| 57 | DN-00567 | 008200606 |
M6 Uni 7473 Zd
|
3 req |
| 58 | RN-00359 | 008400606 |
Washer 12.5x6.4x1.6 Uni 6592/5
|
3 req |
| 59 | PN-00403 | 008300610 |
Stud 6x1x16 8g Uni5911 Z.
|
3 req |
| 60 | MB-03091 |
001804885 |
Oil Dipstick Pipe
|
1 req |
| 61 | DN-00722 |
008200401 |
Nut, M4 Uni 5587/5s/Z
|
12 req |
| 62 | RFN-00724 |
008410402 |
Washer D.4.3 Uni 1751 /Zd
|
12 req |
| 63 | PN-00716 |
008300401 |
Special Stud M4x7 |
12 req |
| 64 | MB-03094 |
001883094 |
Gasket |
1 req |
