GT400 2+2 Electrical Components

any help here? I need info and scans on GT400 components. i need info and scan/photo on all ac pieces, incl distributor. i need info /scans on all power window equipment, motors/switches.

1. front signal lights
2. headlights
3. foglights
4. light, under hood
5. switch, under hood light
6. side repeater turn indicators
7. heater motor
8. motor, radiator fan left
8. motor radiator fan right
9. coils, ignition left & right
10. horn compressor
11. horn relay
12. bulb switch, oil pressure lo
13. bulb sender, oil pressure
14. alternator
15. bulb sender, water temp
16. bulb sender, oil temp
17. bulb, switch water temp hi
18. switch, backup light
19. light, panel warning alternator
20. light, panel warning turn signal
21. light, panel warning running lights
22. light, panel warning, hi beam on
23. light, panel warning low fuel

24. light, panel warning water temperature
25. light, panel warning aux rad fan on
26. light, panel warning lo oil pressure
27. lights, gauge internal
28. gauge, speedometer
29. gauge, oil pressure
30. gauge, tachometer
31. gauge, water temp
32. gauge, oil temp
33. gauge, fuel
34. gauge, ammeter
35. motor, windshield wiper
36. motor, starter/solenoid
37. fuse block
38. radio
39. fuse, foglight pair
40. toggle switch, radiator fan left
41. toggle switch, fog lights (optional , not common)
42. toggle switch, windshield wiper
43. rotary switch, headlights
44. toggle switch, rheostat to gauge/dash lights
45. toggle switch, heater motor
46. toggle switch, rear glass defrost

47. light, cigarette lighter
48. blinker flasher turn signal
49. motor, window left
50. switch, motor left window
5l. switch , ignition
52. cigarette lighter
53. motor, window right
54. switch, motor window right
55. light, door edge left
56. light, door edge right
57. switch, door edge light
58. switch, turn signal, horn, hi beam
59. pump, electric fuel
60. Battery?
61. light, interior compartment
62. light, trunk compartment
63. awitch, trunk light
64. switch, brake light
65. rear brake lights
66. tail lights
67. rear turn lights
68. license light
69. backup light
70. gastank level sender
71. wire connenctor

bianco = white
giallo = yellow
rosso = red
verde = green

bleu = blue
viola = violet
nero = black
arancio = orange

celeste = light blue
marrone = brown
grigio = gray
rosa = pink

Description	OEM details	Photo 1	Photo2
1) front turn signal, running light, tear drop	Altissimo - tav400GTlights.html
2) headlight lo/hi	Hella - tav400GTlights.html
2a) relay, headlight	Hella
3) foglights	Optional, usually not on GT400 2+2, probably Carello

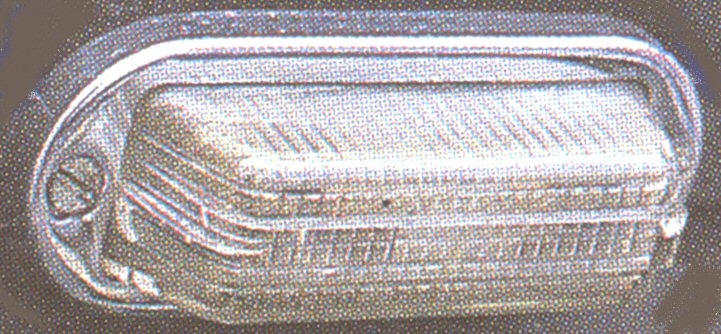

4) under hood light
5) switch underhood light	CEAM pin switch
6) sidelight repeaters	Atissimo
7) heater motor	Lucas, type 3GM, 78378 12 67 12V GC, see rad fan
8) radiator fan motors	Lucas, type 3GM, 78378 12 67 12V GC, see heater fan

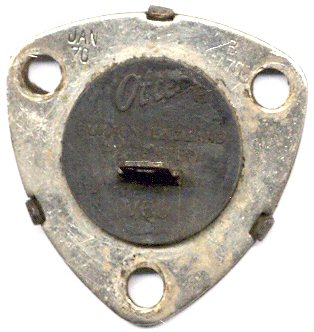

8a) switch, radiator fan right	cast into black plastic - Otter, Patented, Buxton England, V60 appears to be same as early XKE Otter fan switch
8b) relay, radiator fan right	Lucas

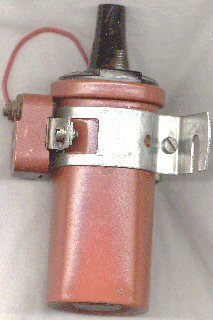

9) coils, ignition	Magneti Marelli BZR-201-A resistor marked - REF 2A, 8G- Ω 1.5
10) horn compressor	Fiamm, Road Master horn trumpets - candy red tubing - garish red opaque y piece - red plastic metal parts - hammertone silver
11) horn relay	Fiamm, 12v, black plastic, early Miura will have screw terminals with added tabs, late Miura will have riveted tabs
12)bulb, switch oil pressure lo	Jaeger, 12V06981202D9 ALERTE MANO 045 IOBAR
13) bulb, sender oil pressure	Jaeger, 12V06981202D9 ALERTE MANO 045 IOBAR
14) alternator	Bosch # 0 120 400 547, K1-14v-55a20,
14a) voltage regulator	Bosch RS AD1/14v 0 190 601 006 AD 1/14V band of tape to hold cover - usually translucent ivory
15) water temperature sender	Jaeger, 82405, H7, 02, M16x1,5 , 12v on the bakelite is - 13
16) oil temperature sender	Jaeger, 82405, H7, 02, M16x1,5 , 12v on the bakelite is - 14
17) bulb, switch water temp hi	Jaeger
18) switch, backup light	CEAM- TORINO - used on Maserati - 5mm travel, normally open, spring loaded momentary on, jam nut, Ceam #92020
19) light, warning, alt fail, red	Lucas, WL15, #38189A
20) light, warning, turn sig, arrow	Lucas, WL15
21) light, warning, lights, green	Lucas, WL15, #38191A
22) light, warning, high beam, blue	Lucas, WL15,
23) light, warning, lo fuel, amber	Lucas, WL15
24) light, warning, water temp, red	Lucas, WL15, #38189A
25) light, warning, fan on , white	Lucas, WL15
26) light, warning, lo oil, red	Lucas, WL15, #38189A
27) light, internal gauge/dash	Jaeger
28) speedometer	Jaeger
29) gauge, oil pressure	Jaeger
30) gage tachometer	Jaeger
31) gauge, water temp	Jaeger
32) gauge, oil temperature	Jaeger
33) gauge, fuel	Jaeger
34) gauge, ammeter	Jaeger
35) motor, windshield wiper	Lucas
36) motor, starter + solenoid	Bosch
37) fuse block
38) radio	varies
39) fuse, foglight
40) switch, toggle, rad fan left	Lucas #34870B 4 66
41) switch, fog lights	not used in 5 toggle array
42) switch, Wipers, toggle, 3 position	Lucas 3 position, off-slow-high, #?
43) switch, rotary headlight	Lucas rotary headlight, running light Lucas #34304E 5 64, black plastic knob marked O S H for Off-Sidelight-Headlight used with goofy reverse taper bezel threaded chrome ring nut terminal 13 - double red wires (one for lights, one continuing to cigar lighter power) terminal 1 - white wire terminal 2 - black wire would appear to be a Lucas type type PRS7, but could be also 16A Suggestion - the switch needs to be used at low amps by simply adding relay at the fuse block. see this page fuse block for a diagram of existing setup. so - instead of taking power from the 4.0 fat red on the fuse block , coming hot to ignition switch, continuing hot to light switch, then switched on back to fuse block to power as 2.5 bianco. You need to go direct from double red buss to 2.5 bianco - switched by a new added relay. This requires minimal (and reversible) wiring and a $10 relay from AutoZone.
44) rheostat toggle	Lucas, friction positional, dimming toggle to match toggle switch, #78431D 8 66
45) switch, toggle	Lucas #34870B 5 66
46) switch, toggle	Lucas #35502A 6 66
47) light, cigar lighter	Falcos
48 blinker flasher turn signals	Altissmo, 12V 43W

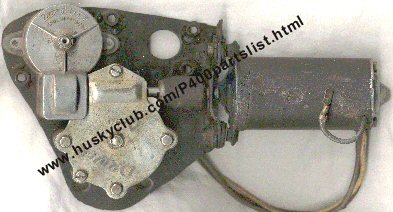

49) motor, window left
50) switch, window left
51) ignition switch	C.E.A.M.

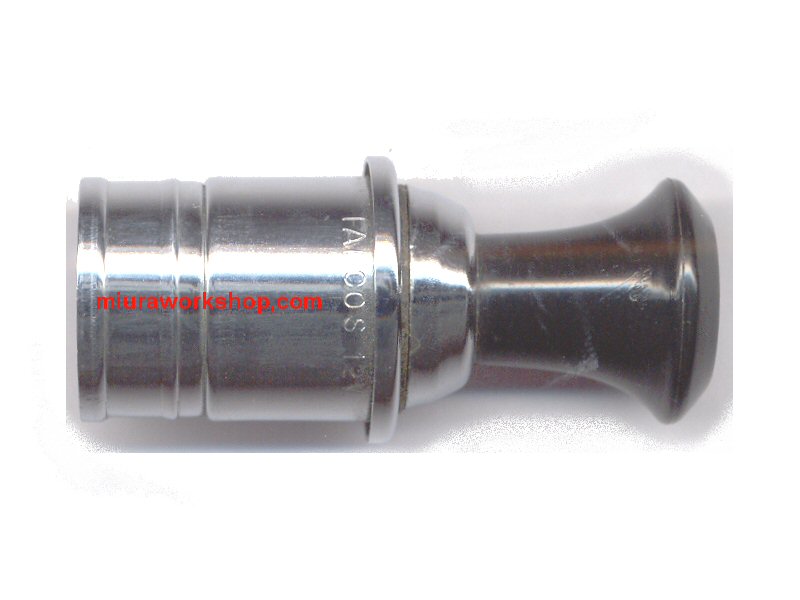

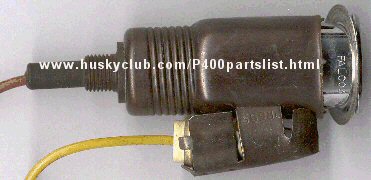

52) cigar lighter	Falcos, Torino, 12v
53) motor, window right
54) switch, window right
55) light, door jamb left	Lucas
56) light, door jamb right	Lucas
57) switch, back up light
58) switch, turn sig, hor, hi/lo/flash	Lucas type 119SA, #35978D ) see discussion/notes on steering column page
59) fuel pump GT400	Bendix "Elmira" #480532 Facet #480532
60) battery?	Tudor
61) light, interior

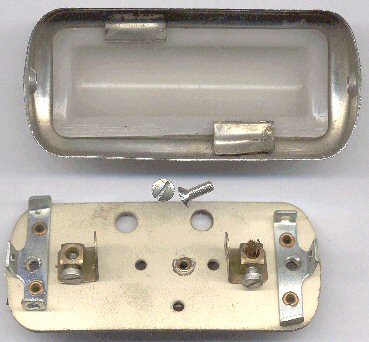

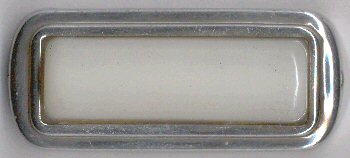

62) light, trunk
63) switch, trunk light
64) switch, brake lights	Lucas, Type 2SH stamped into metal (underside, opposite bakelite) - #34619A, bakelite marked - Lucas, England, 2SH , 37
65) trunk light
65. light, rear brakes , left & right	Hella - tav400GTlights.html
66. light, tail , left & right	Hella - tav400GTlights.html
67) light, turn, left & right	Hella - tav400GTlights.html
68) light , license	Hella - tav400GTlights.html
69) light, back up
70) fuel level float sender	Jaeger ?, top marked 12V co v1 166
71) connections

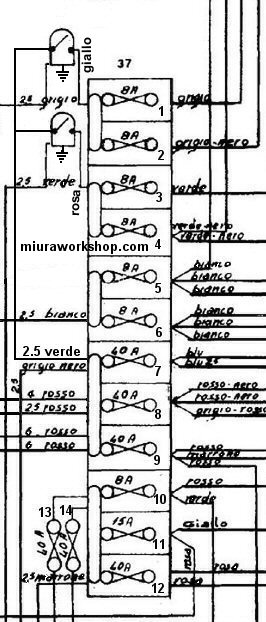

fuse block schematic

No	description --------------------------------------	fuse amps	description
1	2.5 grigio(grey) feed from turn signal switch	8	1 grigio low beam right
2		8	2 grigio-nero low beam right
3	2.5 verde(green) feed from turn signal switch	8	3 verde high beam right
4		8	4A verde-nero high beam left 4B verde-nero hi beam indicator
5		8	5Abianco park light indicator 5B bianco l&r tailight/license light 5C bianco dash light dimmer
6	2.5 bianco(white) feed from headlight switch "S" position (hot all time)	8	6Abianco parking light front left 6B bianco backup light switch 6C bianco parking light right/engine light
7	grigio-nero(grey black) feed (hot all time) to turn signal switch	40	7A blu radio 7B blu 2.5 right window switch
8A 8B	4mm rosso(red) feed (hot all time) to ignition switch 2.5mm rosso(red) feed(hot all time) to horn compressor (additional single fuse)	40	8A rosso-nero interior light 8B rosso-nero interior light 8C grigio-rosso 2.5 left window switch
9A 9B	6mm rosso(red) feed from alternator to chg battery 6mm rossa(red) battery feed from starter/ammeter	40	9A rosso(red) left rad fan & rear window elec defrost 9B marrone(brown) ? 9C rosso(red) l &r brake switch/lights
10	see 13, 14	8	10A rosso(red) flasher/blinker 10B verde(green) ww motor
11		15	11Agiallo(yellow) Bendix fuel pump 11B rosa(pink) lo fuel light & hi water temp light
12	2.5mm marrone(brown) from ignition switch turned on - 10, 11, 12, 13, 14 powered up by the key switch	40	12A rosa(pink) to ignition coil left 12B rosa(pink) to ignition coil right
13	radiator fan left - external single in line fuse	40
14	radiator fan right- external single in line fuse	40

The fuse ratings are European standards from 1966 - make sure you understand what fuses are correct, and not be mislead by your limited experience.
Classic electical mistakes are
1) fuse replacements with too high rating.
2) bulb replacement with too high wattage.

note - there are single inline fuses to service
air conditioner system - 40A fuse near fuse block
horn compressor - 40A fuse near horn compressor
cigar lighter - 40A fuse behind gauge panel, requires panel removal
fog lights - 8A unknown location

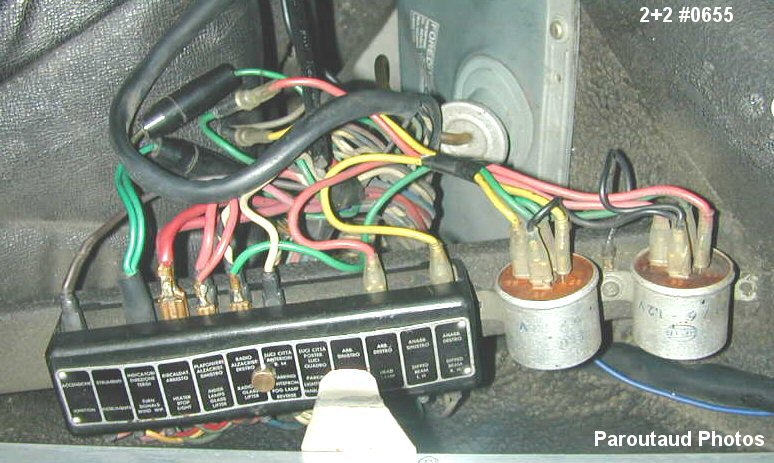

except for three missing terminal covers, this is an OEM GT400 2+2 fuse block, Hella high beam and low beam relays, fan fuses, Foredit washer bag, etc.
