| Description - P400 |
Lamborghini part number |
OEM manuafacture part number |
notes |
Alt |
approx cost |
| filter, oil |
MO-001188 |
Fiamm , Baldwin P-....see filter page |
|||
| gasket, oil filter housing |
MO-01128 001501128 |
||||
| o-ring, filter top |
GN-00954 008602002 |
ANELLO D.21 OR-128, anello OR in gomma nera NBR, dim.20,64 x 2,62 mm. |
21mm |
||
| gasket, copper -2ea |
RN-00922 |
flat copper washer |
|||
| o-ring, oil elbow |
GN-01620 008602302 |
ANELLO D.23 OR-4093 anello OR in gomma nera NBR, dim.23,40 x 3,53 mm. |
23mm |
||
| o-ring, oil sender T |
GN-01776 |
ANELLO D.17 OR-3068 NBR black rubber O-Ring, size 17,13 x 2,62 mm, code 3068/122 |
|||
| bearing - 2ea |
CAN-00952 |
Durkopp, DHK1712, 17 needle rollers, caged needle roller brg |
17x23x12mm |
Torrington FJ-1712 |
|
| bearing |
CA-00952 |
Durkopp, DHK1712, 17 needle rollers, caged needle roller brg |
17x23x12mm | Torrington FJ-1712 | |
| bearing |
MO-02295 |
||||

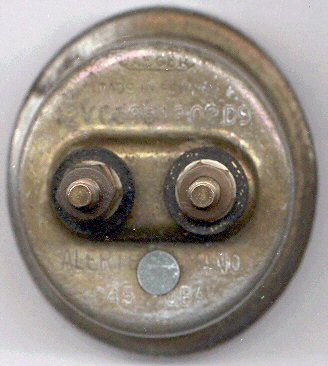

| switch, oil press lo |
MO-01494 001501494 |
Jaeger, 12V06981202D9 ALERTE MANO, 045 IOBAR TRASM.PRESS.OLIO 01006981 |
espada, jarama |
$110 |
|
| pipe, oil pump to block |
MO-03757 |
steel 20mm thin wall, silver solder fittings |
|||
| fitting |
MO-03756 |
bronze casting, 60° taper sealing face, oring seal to oil pump drive |
|||
| fitting |
MO-01481 |
aluminum casting, 60° taper sealing face, oring seal to block |
|||
| valve, oil pressure relief |
MO-00914 |
steel cup piston |
|||
| spring, oil pressure relief |
MO-00927 |
length 78.5, OD 12.66, wire 1.75, coils 21.5, rate .38Kg/mm |
|||
| housing, oil filter |
MO-00874 001500892 |
$120 |
|||
