| Description |
Lamborghini part number |
OEM details |
OEM finish paint |
notes |
|

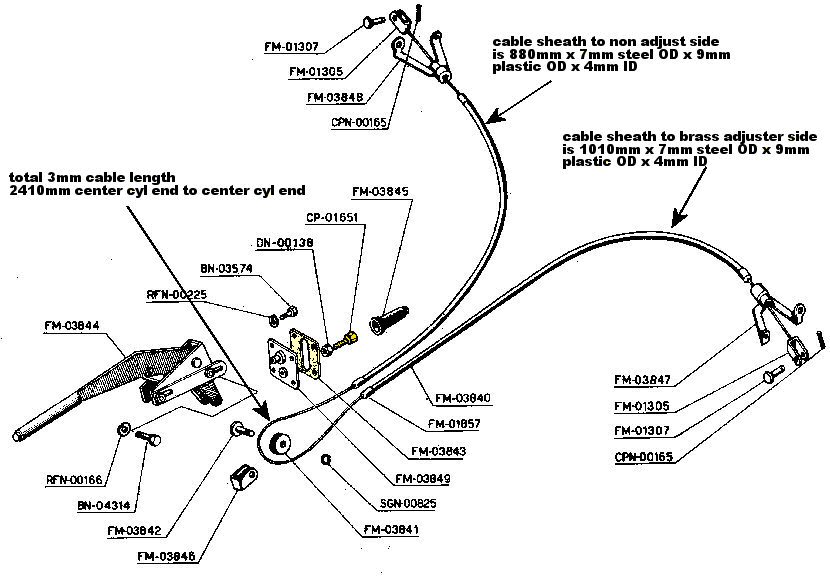

| handle, hand brake assm |
FM-03844 |
Fiat, cut, reangled, welded, pulley sys modified, brackets modified |
gloss black |
||

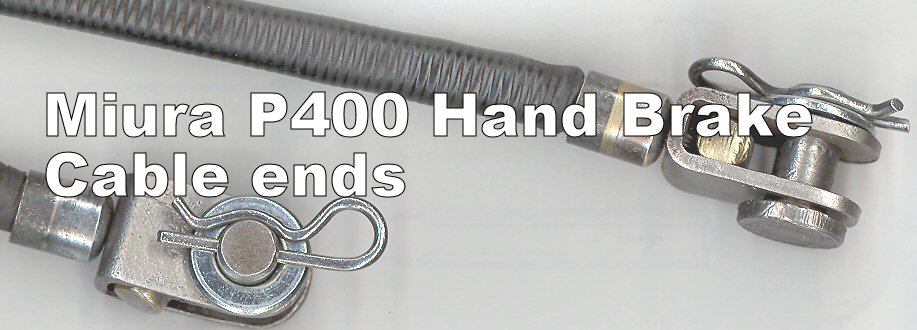

| pin, brake clevis - 2ea |
FM-01307 |
8mm |
see photo |
||
| clevis, cable - 2ea |
FM-01305 |
see photo |
|||
| pin, spring lock - 2ea |
CPN-00165 CPN-04787 |
1.85mm |
see photo |
||
| washer, clevis (not shown) -2ea |
RN-00641 |
16x8.5x1.5 steel washer |
see photo |
||
| cable assembly, hand brake |
FM-03840 |
3mm steel cable, 7mm steel sheathing, 9mm OD plastic covering |
black plastic |
||
| cable steel 3mm |
none |
2410mm |
|||
| sheath cable |
none |
880mm |
|||
| sheath cable |
none |
1010mm |
|||
| sheath end caps - 4ea |
FM-01857 |
brass cZ, 8.25 ID x 10 OD x 12 length, sheath skived to allow fit |
see photo |
||
| adapter , cable |
FM-03847 |
||||
| adapter, cable |
FM-03848 |
||||
| circlip, external |
SGN-00825 |
||||
| pin, brake pull cable pulley |
FM-03842 |
||||
| pulley, hand brake |
FM-03841 |
||||
| boot, cable adjuster |
FM-03845 |
tight fit at 9mm cable and 17mm hex, boot length 40mm |
rubber |
||
| cable stay bracket |
FM-03846 |
||||

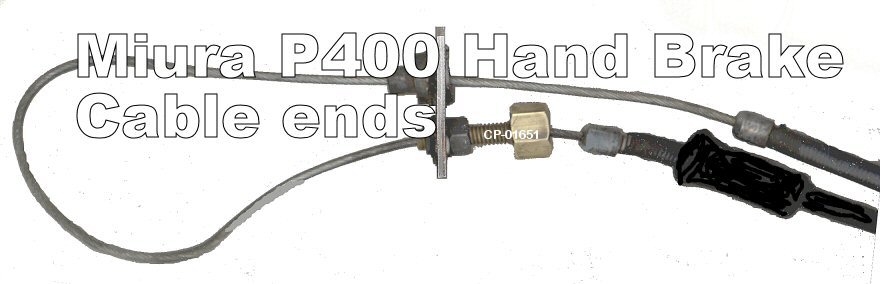

| adjuster, cable, brass |
CP-01651 |
17mm hex, 30mm thread length, 8 x 1.25 |
|||
| plate, bulkhead |
FM-03849 |
steel, 65x51x2.75, 5° tilt from horz, 5° tilt to right on fittings |
|||
| nut, adjuster jam, steel |
DN-00138 |
8x1.25 |
|||
