Description
|
Lamborghini
part number
|
OEM
details
|
notes and dimensions
|
cosmetics
|
|
damper, steering rack
|
CS-03853
|
ARMSTRONG
Armstrong patents Co Ltd
York England
Patent No ............&Subsequent
Type GT/5/51033 Date 6/68
|
Dimensions-
eye to eye ext - 545mm
eye to eye comp - 325mm
mount bush - 10mm x 24mm
body OD lower - 32mm
cover OD top - 38mm
|
painted dark metallic grey blue
|
|
bolt, steering damper
|
BN-03547
|
|
|
|
|
bolt, steering damper
|
BN-03914
|
|
|
|
|
washer, steering damper bolt
|
RFN-01293
|
|
|
|
|
inner tie rod
|
CS-03839
|
ball joint assembly threaded and lock tab washer into rack - 16 x 1.5 LH
|
|
|
|

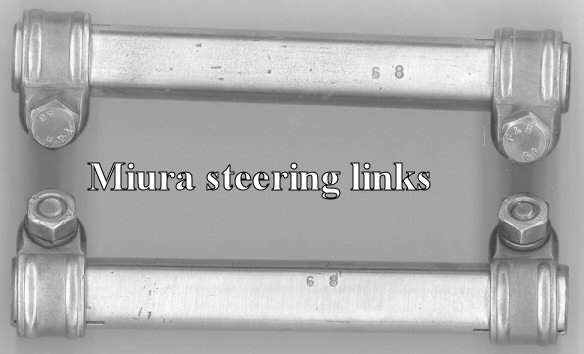

link, tie rod, tubular
|
CS-03839
|
left / right 16 x 1.5 threads in split tube ends that are locked with bolted band clamp |
|
![](links260.jpg) |
|
rod end, tie outer
|
CS-03839
|
threads 16 x 1.5 RH
|
|
|
|

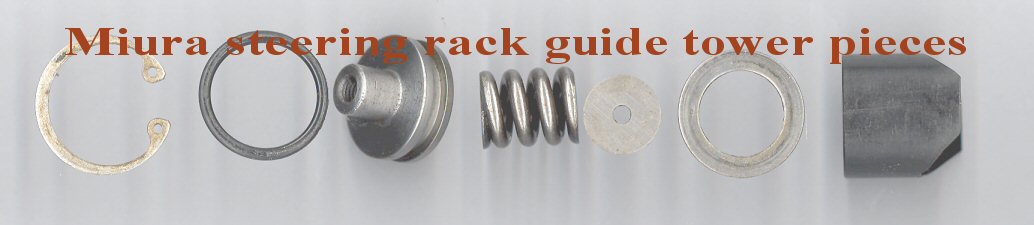

snap ring internal
|
SGN-03902
|
stamped I-106
|
|
|
|
cap, spring tower
|
CS-03891
|
steel - 26.95mm OD x
|
|
|
|
oring
|
GN-01041
|
see orings
|
|
|
|
oring
|
GN-03532
|
see orings
|
|
|
|
washer, special shim
|
RN-04186
|
steel - 18mm x 26.8mm x 1.15mm thick
|
|
|
|
spring, rack tower
|
CS-04074
|
steel - 16.75mm OD x 3.5mm wire x 4.5 coils x 20.3mm length
|
|
|
|
washer, special
|
RN-03892
|
steel, to protect plastic from spring - 4mm x 16.45mm x 0.50mm
|
|
|
|
guide, rack
|
CS-03890
|
plastic, Delrin like - 27.04 OD
|
|
![](racktowerpieces2.jpg)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
