P400 pedals, brake and clutch master cyls


description
 Lamborghini
part number
 oem  manufacture
part number
 alt supply
number
 notes
 approx
cost
Brake master cyl
 CP-04200
 Bonaldi? Koni?


Brake master cyl kit




Clutch master cyl
 CP-03866
 Girling 3/4", 64067812
casting stamped -  7812   ECHP7
 $80
Clutch master cyl repair kit
Girling SP2186
http://www.racecarsupply.com/html/brakes.html
 $20
Pedal, Accel
 CP-02683

curved metal  pedal dim - 143 x 35 x 2 - radius corners
Pedal, Brake
 CP-02911

curved metal pedal dim - 63 x 50 x 2 - radius corners
Pedal, Clutch
 CP-02676

curved metal pedal dim - 65 x 50 x 2 - radius corners
pad, accel
 CP-03128

repros have poor grid pattern
pad, brake and clutch
 CP-01212

repros have poor grid pattern






cable, throttle
 CP-04190
 length - 1795mm
2.5mm steel cable, length is ball fitting center to cut end
sheath, cable
na
 length - 1550mm
8mm plastic covering OD, 7mm steel sheath OD
ends, cable sheath
 FM-01857

brass cZ, 8.25 ID x 10 OD x 12 length, same as hand brake
nut, adjuster
 DN-00138

8x1.25 steel
adjuster, cable brass
CP-01651

17mm hex, 30mm thread length, 8 x 1.25, same as hand brake
end, ball w/fitting
 na

steel


















additional 2013 resources for master cylinder from Jürgen W. -
http://en.golinelliloris.com/ricerca.php?chiave=miura&diametro=&settore=&marca=&prodotto=&submit.x=0&submit.y=0
Have a look at this guy's site, he seems to know a lot about Bonaldis and suggests improvements (scroll all the way down):
http://www.brakecylinder.com/oddsandends.htm#Benditalia_Bonaldi
The brake master cylinder on your exploded view is the same as the FIAT 850 Spider one – except the later has two holes where the Miura one has only one. At EUR 19,50 it is a steal...
http://www.ebay.de/itm/Hauptbremszylinder-Fiat-850-Sport-Brake-Master-Cylinder-/140669954702?pt=DE_Autoteile&hash=item20c0952a8e
Here's a link for the original FIAT 2300 master brake cylinder at EUR 480,00 (FIAT numbers 4110334, 4105671, 4127548, 4183029):
http://www.ebay.de/itm/Hauptbremszylinder-Zweikreis-master-brake-cylinder-Fiat-2300-2300S-Coupe-/290805341063?pt=DE_Autoteile&hash=item43b5595b87
However, the same dealer sells the same master brake cylinder for a FIAT light truck and claims it is the same as used in the Miura at EUR 90,00 (FIAT numbers 4396082, 4334273, 4295012). He also mentions that the original cylinders in the Miura were made of aluminum:
http://www.ebay.de/itm/Hauptbremszylinder-master-brake-cylinderFiat-238-E-Lamborghini-Miura-/290937638530?pt=DE_Autoteile&hash=item43bd3c0e82
If you look closely, the FIAT 2300 cylinder seems closer to the original shown in the exploded view of the spare parts manual.


additional resources
http://www.resleeve.com/sleeving.htm
http://www.racing-stuff.com/master_cylinders.htm
http://www.nfauto.co.uk/master_cylinders.htm
http://essexparts.com/CatalogPDF/Essex_52~Caliper-Hyd_Rep.pdf - 1 page
www.girling.de
notes from P400S parts book
starting with chassis #4149 a left foot rest was installed .
CP-06126 bracket
CP-03128 rubber pedal cover
with fasteners DN-00567 and RN-03800
this left foot rest can be added to chassis #3829 on forward as well.

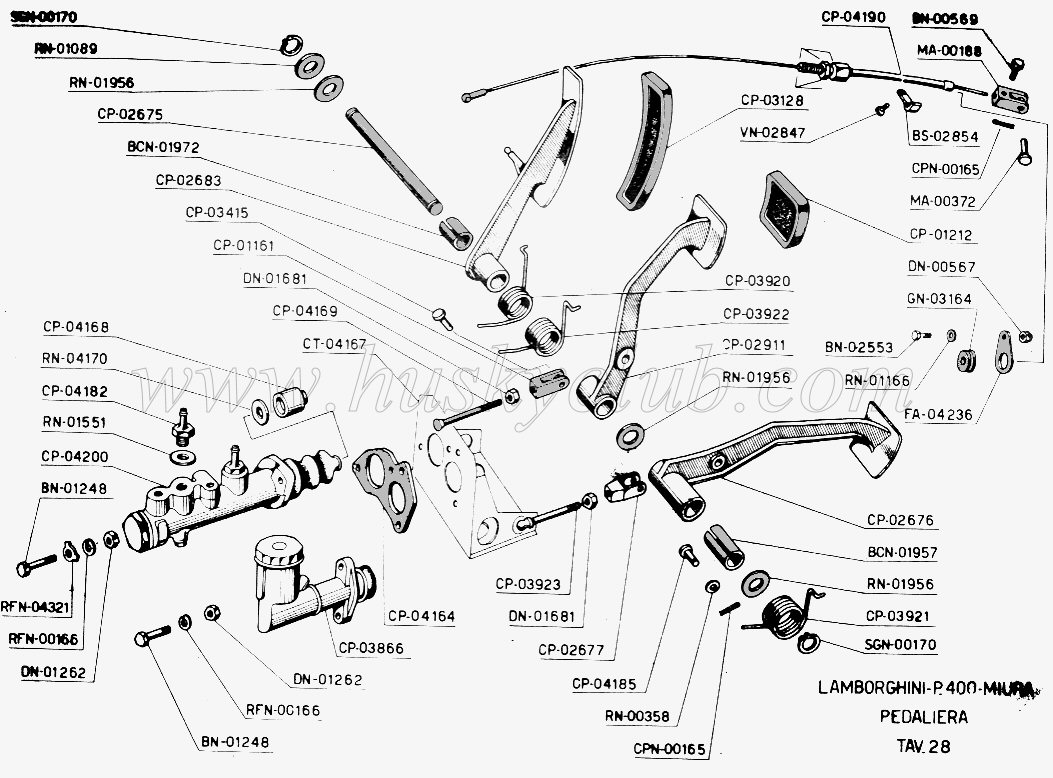

Miura pedal system
 graphics/photo
Pedal bushings BCN-01972 2ea and BCN-01957 1ea in early Miura were a piece of poly plastic, probably Vulkollan flat stock cut to size to fit each pedal. The accelerator and brake take the same width and the clutch took a wider piece. This poly material fails and comes apart, jamming up the pedal movement.
The Miura builds switched to metal backed split bushings during the S series. Two of these MB1815DU split bushings were installed in each pedal pivot. The construction of the bushing is carbon steel with a PTFE inner surface.

The part number MB1815DU, with MB as metal backed, 18 as 18mm shaft size, 15 as 15mm width, DU indicating a Glacier brand split bushing.

For just one of many supply potential - http://www.ggbearings.com/products.asp

To the right is a photo of GTCP supplied pedal bushings, probably 1982 vintage. I do not remember the cost. Click for larger view



Pedal end of throttle cable CP-04190 , showing same brass adjuster as on the hand brake cable

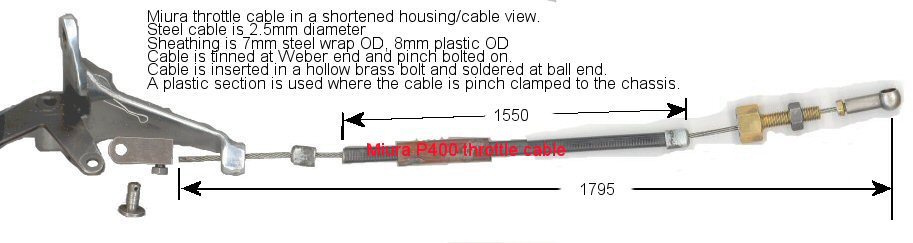

Dimensions for fabricating a replacement throttle cable

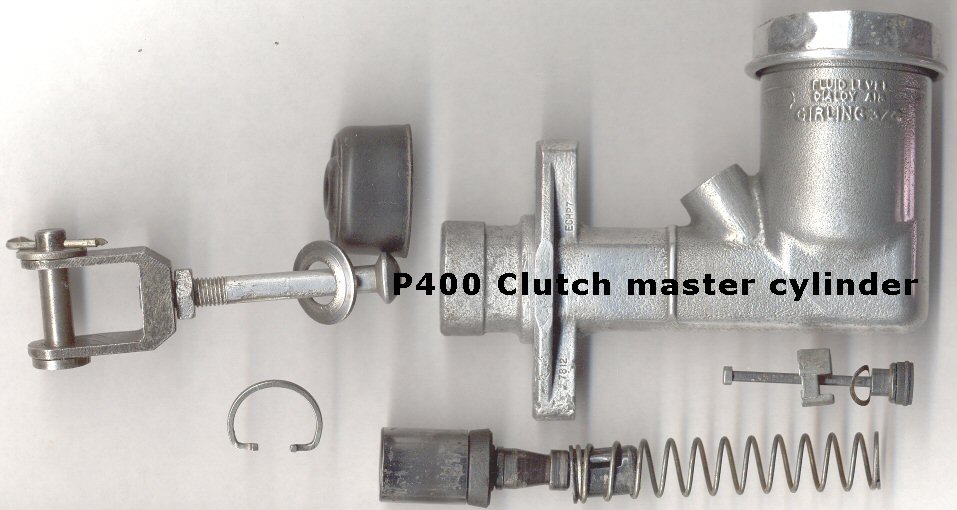

P400 Miura clutch master cylinder - CP-03866

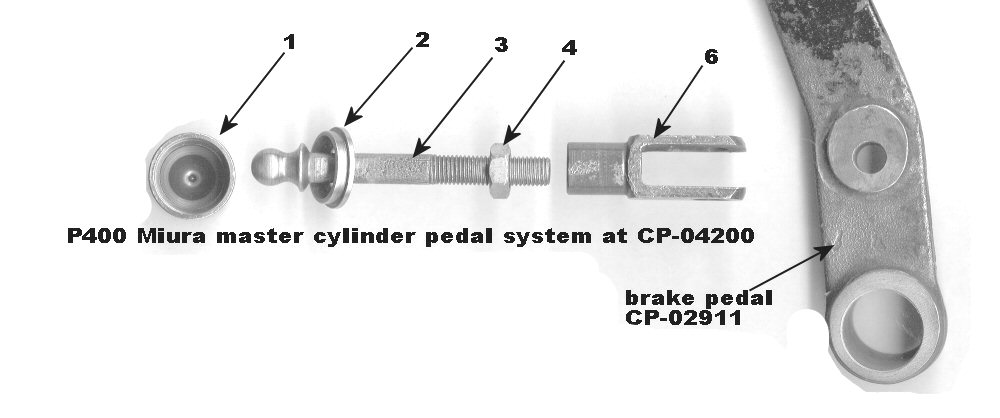

P400 Miura brake master cylinder - CP-04200 or 004204200

thank you to George Girot for technical help

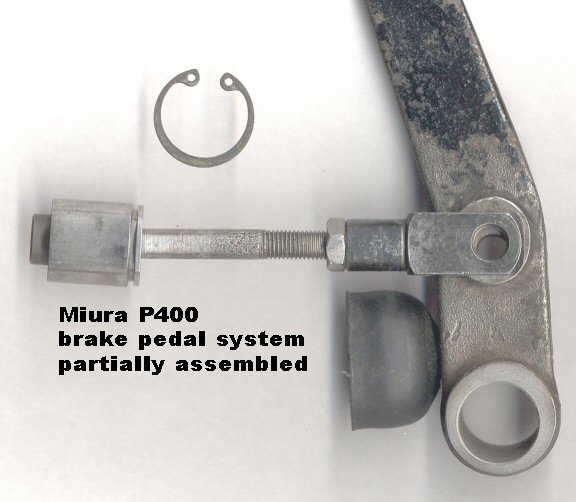

pedal system


oem pedal pads to show waffle detail
