part number
construction
finish/paint
notes

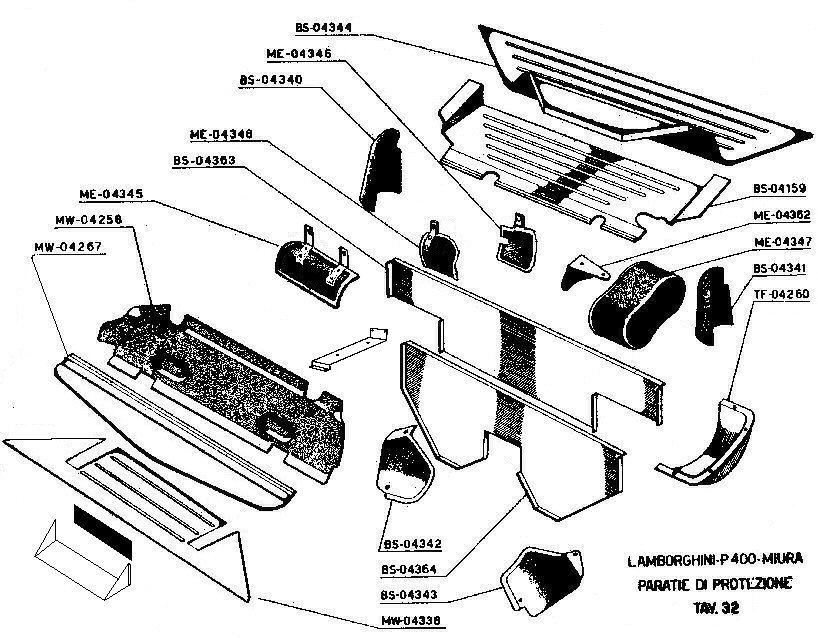

drawing
| Description |
Lamborghini part number |
material construction |
OEM finish/paint |
additional notes |
fabrication drawing |
pictures |
| rear exhaust "Z" heat shield |
BS-04344 |
1mm aluminum sheet |
flat black |
has fiber insulation glued to bottom surface |
||
| rear exhaust/water tank heat shield |
BS-04159 |
1mm aluminum sheet |
flat black |
|
||
| dual distributor shield |
ME-04347 |
fiberglass? aluminum? |
flat black |
has BP lube info plate rivited to top |
||
| Dual dist cover bracket |
ME-04362 |
sheet steel weldment |
wrinkle black |
1.5mm steel, stitch welded, very crude construction |
|
|
| bell housing lower cover |
TF-04260 |
fiberglass |
flat black |
|||
| starter shield outer |
ME-04345 |
alum/asbestos layers |
flat black |
rivited brackets, weldment, 1.5 alum, 1.5 steel strap |
|
|
| engine firewall upper |
BS-04363 |
1mm aluminum sheet |
unpainted |
fiberglas panel glued to inside | |
|
| engine firewall lower |
BS-04364 |
1mm aluminum sheet |
unpainted |
fiberglas panel glued to inside |
|
|
| radiator upper foward deflector |
MW-04267 |
1mm aluminum sheet |
flat black |
|||
| radiator lower deflector |
MW-04338 |
1mm aluminum sheet |
flat black |
|||
| hood air deflector |
MW-04258 |
fiberglass |
flat black |
|||
| air deflector panel w/gas tank fill |
not shown above |
aluminum |
flat black |
aluminum |
||
| upper scoop air deflector - right |
BS-04340 |
aluminum sheet | wrinkle black |
aluminum |
||
| upper scoop air deflector - left |
BS-04341 |
aluminum sheet |
wrinkle black |
aluminum |
||
| cover, alternator heat shield |
ME-04346 |
aluminum sheet/steel brkt |
flat black |
steel strap, rivets, split rubber in cable route cutout |
|
|
| cover, oil sender heat shield |
ME-04348 |
aluminum sheet/steel brkt |
flat black |
steel strap, rivets |
||
| air diverter panels right rocker |
BS-04342 |
aluminum sheet |
flat black |
only observed in use on pre 3000 Miura |
||
| air diverter panel left rocker |
BS-04343 |
aluminum sheet |
flat black |
only observed in use on pre 3000 Miura | ||
| cover, coil dual |
VN-02847 |
aluminum |
wrinkle black |
|||
| scoop, chin sheet steel |
na |
1mm sheet steel |
black |
|
||
| grate, chin scoop |
na |
steel standard grate |
black |
7 x 16 mm pattern |
|
