Miura headlight details
| Description |
Lamborghini part number |
OEM details |
other applications |
notes |
| 1) rim, headlight |
Carello |
Fiat 850 |
stainless steel |
|
| 2) glass, headlight prism cut |
Carello 07.640.700 |
Fiat 850 |
||
| 2a) glass, headlight, clear |
Carello 07.642.700 |
Fiat 850 |
||
| 2a)glass, headlight, prism cut with hi curve |
Carello 03.640.700 |
Lamborghini Miura |
||
| 2b) gasket, glass to body |
Carello |
Fiat 850 |
not shown |
|
| 3) body, headlight |
Carello, steel |
Fiat 850 | Fiat # 9916591 | |
| 4) gear, bracket, left and right |
Bertone |
steel, custom | fabricated for Miura application |
|
| 5) gear, quadrant, left and right |
Ducellier, steel |
modified for Miura application |
||
| 6) crank, emergency |
Ducellier |
Fiat, Alfa Romeo |
||
| 7) gearbox set, driver |
Ducellier |
1/52 |
||
| 7a) gearbox set, pass |
Ducellier |
1/52 |
||
| 8) motor, drive |
Ducellier |
12 volt |
||
| 9) coupling, motor to gear |
Ducellier |
modified for Miura |
||
| 10) screw |
Ducellier | |||
| 11) screw |
Ducellier | |||
| 12) nut |
Ducellier | |||
| 13) bracket, main drive |
Ducellier |
 numbered, modified for Miura |
||

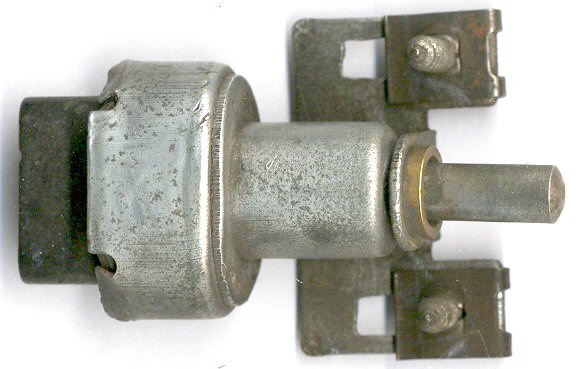

| switch, headlight activation |
Ducellier |
Fiat Dino, Maserati |
 |
|

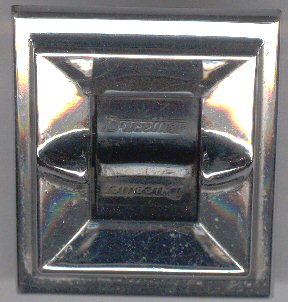

| switch, headlight on |
Altissimo |
 |
||
| overload, headlight motor |
 12volt 15amp |
|||

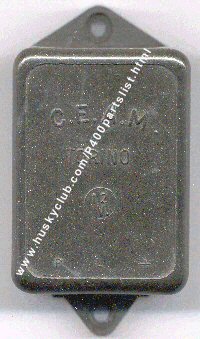

| relay, headlight |
CEAM |
 |
||
| light, hi beam indicator |
SEIM |
orange |
 |
|
| switch, hi lo beam |
Lucas |
type 119SA |
||
| covers, headlight bucket |
Bertone |
|||
| eyelashes, upper, left and right |
Bertone |
numbered |
||
| eyelashes, lower, left and right |
Bertone |
numbered |
||
