| description - P400 only,
not S or SV |
Lamborghini part number |
OEM manufacture part number |
notes |
notes |
|
| 1. lever, release rear
section |
paddle style lever lock on early S (as shown) side pull knob lever lock on most |
||||
| 2. vent, interior |
Renault 10 |
plastic |
|||
| 3. speedo, 320kph |
Jaeger |
no Lambo logo on early model S |
|||
| 4. steering wheel, leather wrapped |
|
||||
| 5. tachometer, 0-100
(0-10,000) |
Jaeger |
no Lambo logo on early S models |
|||
| 6. cable assm, odometer
reset |
Jaeger |
||||
| 7. lever, release
front section |
|||||
| 8. valve, water flow to
heater |
alloy diapham valve |
||||
| 9. turn signal, horn,
hi/lo, flash |
CS01423 |
Lucas type 119SA Lucas type 119SA |
Lucas #34827 - possible
but may not be correct! Lucas #35978 - possible I need help with Lucas numbers, catalogs, etc |
||
| 10. pad, clutch pedal,
rubber |
|||||
| 11. pad, brake pedal,
rubber |
|||||
| 12. pad, throttle, rubber |
|||||
| 13. lever, defrost |
factory |
||||
| 14. vent, interior |
Renault 10 |
plastic, same as #2 |
|||
| 15. light |
SIEM, france, ROMANS |
||||
| 16. light |
SEIM, france, ROMANS |
||||
| 17. light |
SEIM, france, ROMANS |
||||
| 18. light |
SEIM, france, ROMANS |
||||
| 19. light |
SEIM, france, ROMANS |
||||
| light, turn blink indicator |
SEIM, france |
between speedo and tach |
|||
| 20. switch, ignition |
Bosch |
||||

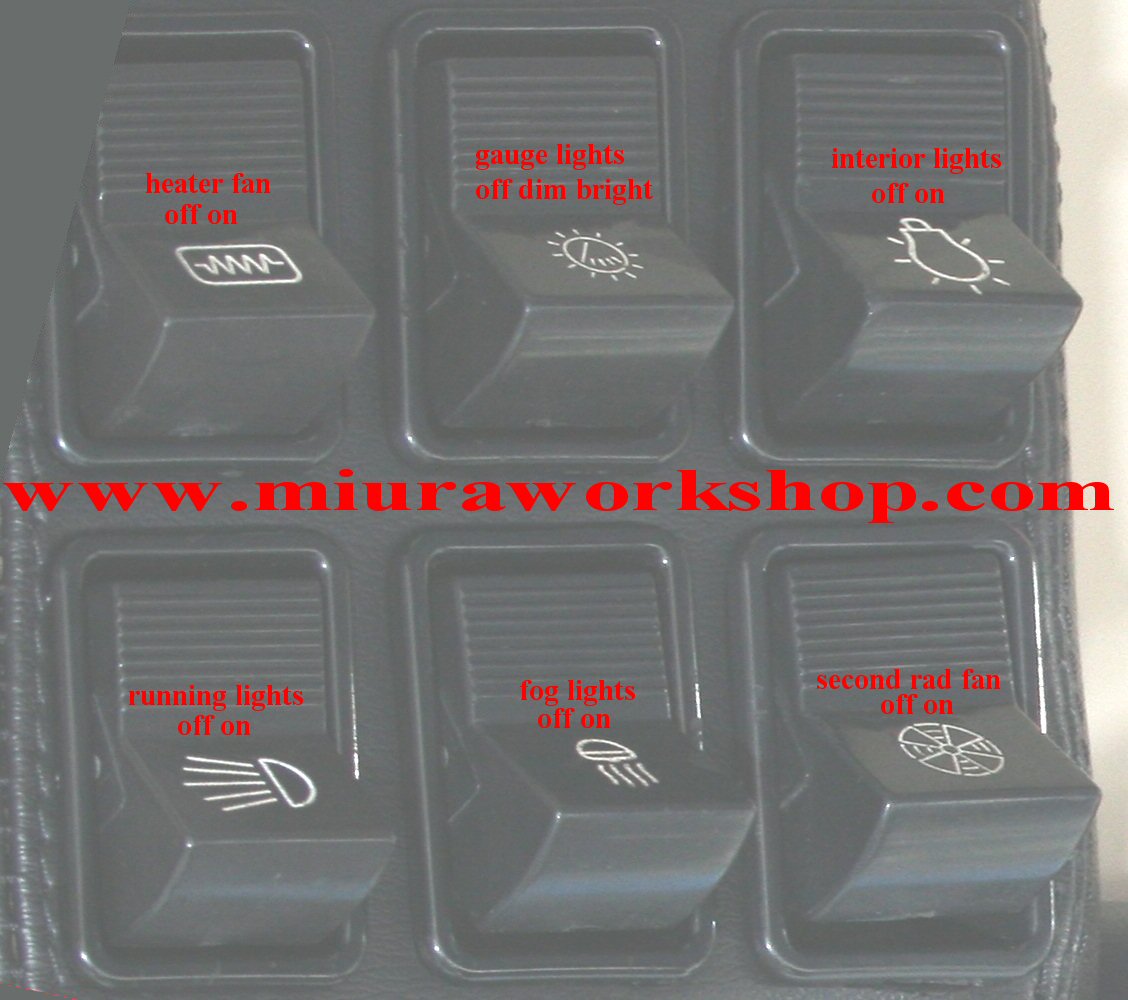

| 21. switch, rocker, running lights |
 |
||||
| 22. switch, rocker fog lights |
|||||
| 23. switch, rocker radiator fan |
|||||
| 24. switch, rocker | |||||
| 25. switch, rocker, gauge lights bright dim |
|||||
| 26. switch, rocker,
interior lights |
|||||
| 27. gage, water temp |
Jaeger |
||||
| 28. gage, oil temp |
Jaeger |
||||
| 29. gage, oil pressure |
Jaeger |
||||
| 30. gage, gasoline |
Jaeger |
||||
| 31. gage, amperes |
Jaeger |
||||
| 32. clock |
jaeger |
||||
| 33. knob, reset clock |
Jaeger |
||||
| 34. knob, gear shift |
leather is standard |
||||
| 35. lighter, cigarette | Falcos | ||||
| 36. shift gate |
Lamborghini |
factory custom |
|||
| 37. switch, windshield wiper, wash | Lucas |
||||
| 38. switch, headlite up/on 38a. switch, headlite, up/on rocker style |
Ducellier, single |
||||
| 39. handle, parking brake |
Fiat 850 Spider |
modified Fiat |
|||
| mirror, rear view |
Fiat 124 Spider |
wrinkle black |
|||
| visor, left driver |
Fiat 850 Spider |
snake bite vinyl black |
|||
| visor, right passenger |
Fiat 850 Spider |
snake bite vinyl black with small oval type
mirror |
|||
| light, interior overhead - 2ea |
Fiat 124 Spider interior |
Carello, Sirio, local switch |
|||
| switch, power windows dual early S |
Ducellier dual |
69 Maserati 4700 Quatroporte, Fiat Dino |
|||
| switch, power windows , rocker |
|||||
| ashtray, standard |
B.O.M. |
brass, all chrome plated, padded insert of matching color vinyl in top |
|||

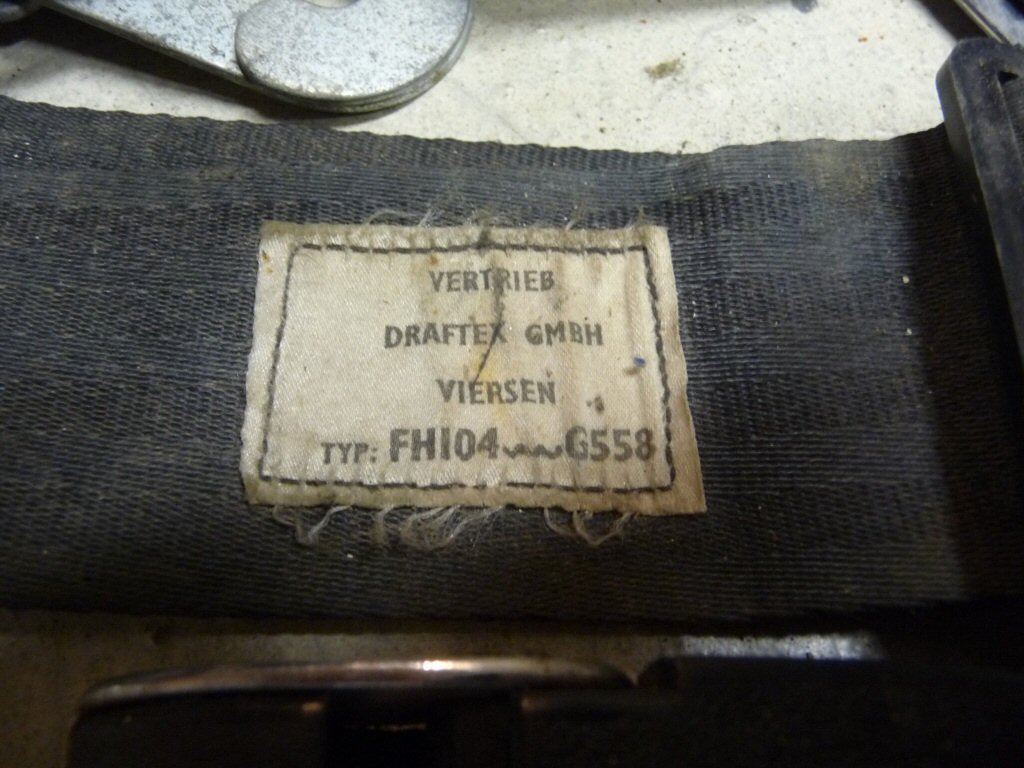

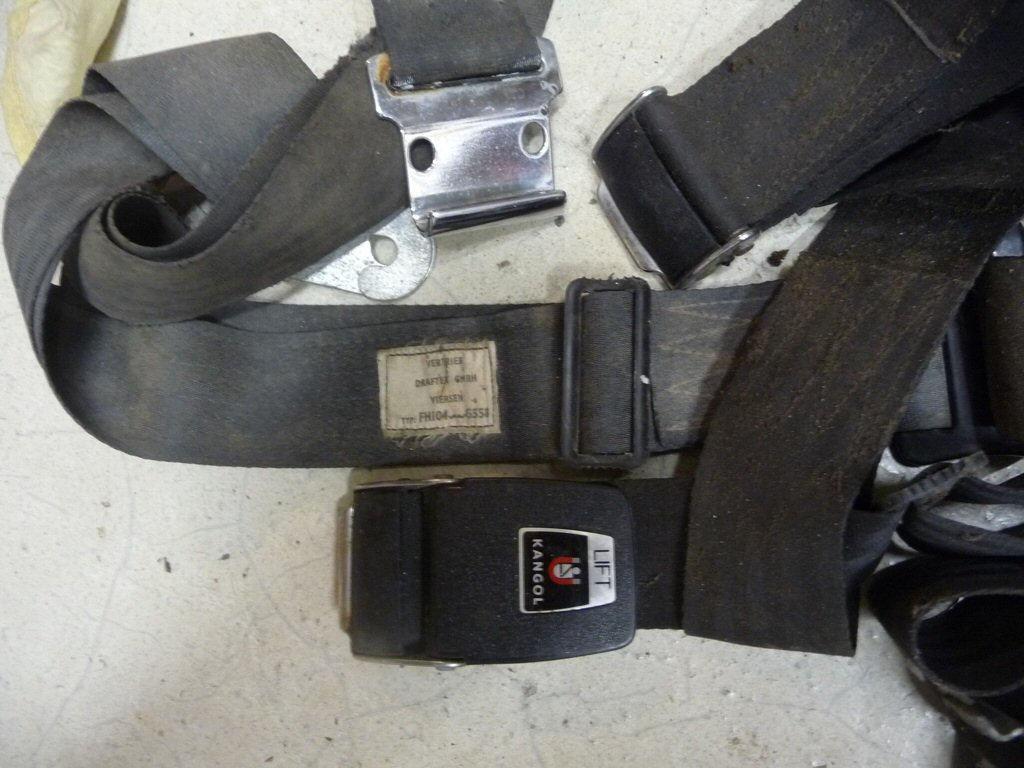

| seatbelts, w/shoulder strap |
Fiat |
Fiat logo buckle |
|||
| headliner, rim headliner, main console |
black vinyl white vinyl white vinyl |
||||
| insulation, headliner |
factory |
fiberglas sheet glued to to roof |
|||
| vent, headliner console with sliding slot
covers |
factory |
white vinyl cover |
|
||
| floor carpet |
|||||
| floor rubber matting |
early Fiat 850 floor covering , ISO trunk |
 |
|
 |
|
 |
