Marelli Distributor Applications for review
Marelli
number
 post
no.
 application
 cap
 rotor
 points
 cond
 graphics
 dist adv at dist rpm
dist rotation
S85A

 6
 Ferrari 250LM-275GTB-275GTS-330GTC-365GTC/S-365GT4/2+2-500SF
703 884 01
 703 880 01
 710 071 02
710 071 02		 CE1E  ¹
562 007 01
 S85A.pdf
 13 at 3700rpm
CW
S85B
 6
 Lamborghini 350, 400, early 400 2 plus 2
703 884 01 703 880 01 710 071 06
710 071 07		 CE1E
562 007 01
5.0 at 2000rpm
CCW
S85C
 6
 Lamborghini 350GT, 400GT, 400 2+2, Islero, Islero S
Lamborghini Miura, Miura S
 703 884 01 703 880 01 710 071 06
710 071 07		 CE1E
562 007 01
9.5 at 2000rpm
CCW
S85AA
 6
 Ferrari 250LM-275GTB-275GTS-330GTC-365GTC/S-365GT4/2+2-500SF 703 884 01
 703 880 01
 710 071 06
710 071 07		 CE29T  ²
561 811 16

CW
S85CA
 6
 69-73 Lamborghini Miura S, Miura SV
74-78 Countach LP400, 78-82 LP400S
 703 884 02 703 880 01 710 071 06
710 071 07		 CE29T
561 811 16
10 at 2000rpm
CCW
S85D







S85E
 6
703 884 01 703 880 01 710 071 06
710 071 07		 CE1E

S85F
 6
 Ferrari 365 GTB4 Daytona
 703 884 01 703 880 01 710 071 06
710 071 07		 CE1E

S87A







S125A
 6
 Fiat Dino Coupe (135 AC-135 BC) - Dino Spyder (135 AS-135BS)
 703 884 03 703 880 01 710 071 06
710 071 07		 CE29T
561 811 16

S125BX
 6
 Ferrari Dino 206GT-246GT,
Fiat Dino Coupe (135AC-135 BC)-Dino Spyder (135AS-135BS)
703 880 01 710 071 06
710 071 07		 CE29T
561 811 16

S125C
 6
 Ferrari Dino 246 USA, Lancia Stratos
703 880 02
CE29T
561 811 16



















S127A
 8






S127B
 8






S127C
 8
 Alfa Romeo Montreal
 711 312 01
 711 308 01
 710 071 06
710 071 09		 CE29T
561 811 16
11 at 1000rpm
S127D
 8
 Alfa Romeo Montreal
 711 312 01
 711 308 01
 710 071 06
710 071 09
 CE29T
561 811 16
16.5 at 1350rpm

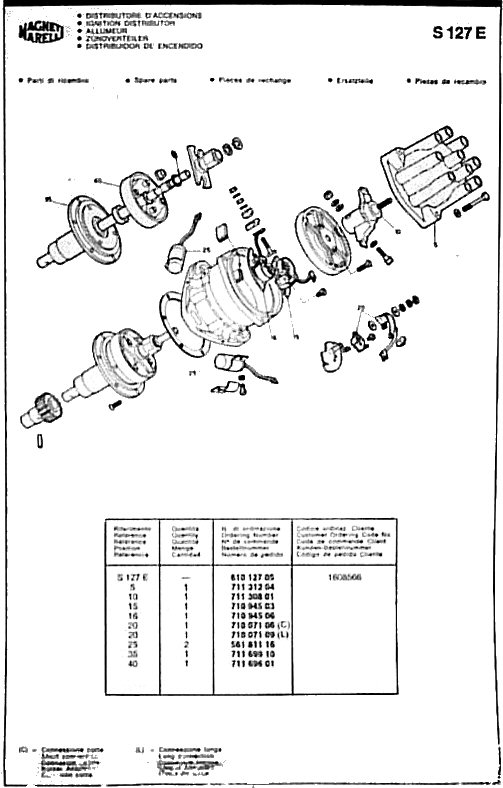

S127E
 8
 Lamborghini Urraco 711 312 04
 711 308 01
 710 071 06
710 071 09
 CE29T
561 811 16		 S127E.pdf
 15 at 2250rpm
S127F
 8






S127G
 8
 Ferrari 308





S129A
 12






S129B
 12






S129C
 12
 Lamborghini Espada


 CE29T
561 811 16
 S129C.pdf
 10 at 2000rpm
S129D
 12
 Lamborghini Espada
Lamborghini Miura S w/ac


CE29T
561 811 16		 S129D.pdf
 16.5 at 1900rpm
S129E
 12
 Ferrari 365 GTC4


CE29T
561 811 16

S129F
 12






S129G
 12
 Lamborghini Miura SV USA w/ac





S138A
 6
 Ferrari 365 GTC
 703 884 01 703 880 02
 710 071 06
710 071 08
 CE29T
561 811 16

S138B
 6
 Ferrari 365 GTB4 USA,  365 GTC4 USA
 703 884 01 703 880 02
 710 945 05
711 438 01
 CE29T
561 811 16
13 at 3700rpm
S138C
 6
 Ferrari 400
 703 884 01

CE29T
561 811 16










S158A
 12
 Ferrari 365 GT4/BB
 711 845 01
 711 844 01



S158E
 12
 Lamborghini Countach 5000S, 5000QV





S158F
 12
 Ferrari 512 BB














S158H
 12
 Lamborghini Countach 5000QV, 5000 25th





S159A
 4
 Ferrari 308 GT4
 710 718 02
 703 880 02
 710 071 06
711 823 01
 CE29T
561 811 16

S159AD
 4
 Ferrari 308 GT4
 710 718 02
 703 880 02
 710 071 06
711 823 01		 CE29T
561 811 16

S159B
 4
 Ferrari 308GT4, 308 GTS, 308 GTB
 710 718 02 703 880 02
 710 071 06
711 823 01		 CE29T
561 811 16
16.5 at 3000rpm
S159C
 4
 Ferrari 308
 710 718 02 703 880 02
CE29T
561 811 16



















notes -
¹ CE1E capacitor rated at 0.18µF = 0.18MFD
² CE29T capacitor rated at 0.25µF = 0.25MFD

i need help with this Marelli list for Lamborghini, Ferrari, Maserati, Fiat, Lancia, Jaguar, and others.
I need the tech data sheets for all these Mareli models as well.
Source for P400 Miura technical

notes -
4/20/07 - Ferrari Dino 308 Long Lead 3 Spr. Dist Points #95300083  Magneti Marelli Long Lead 3 Spring Distributor Points. Ferrari Part # 95300083/4, which replaced 95300087. Fits Ferrari Dino 246, 208 GT4 Dino, 308 GT4 Dino, 308 GTB - for sale on ebay by exotiparts $50 buy it now.

--------------------------------------------------------------
4/29/07 - It appears that Ferrari part numbers related to Marelli numbers on points are as follows
710 071 06 = 95300083 = 3 leaf spring, short lead point set
710 071 07 = 95300084 = 3 leaf spring, long lead point set
710 071 08 = 95300085 =
710 071 09 = 95300086 =

i need more definition on 710 071 08 and 710 071 09
710 071 09 = ????????? = extra long lead point set? four leaf spring? flag terminals crimped to go different direction?
Marelli four point distributor for 12 cylinder with base plates and with/without lube wicks - Marelli S129 series
These are the four point assemblies that go into a S129.   It evidently is long/short with base with no wick..........and long/short with base with wick.
 Marelli #    =   Ferrari #
711 035 01 = 95300281
711 035 02 = 95300282
711 035 03 = 95300283
711 035 04 = 95300284
i do not know which are which - please help
Marelli 710 071 06 and 711 071 07 mounted complete on a new base plate
710 945 03 = 3 leaf spring, short lead points set 710 071 06 on a new base plate complete
710 945 04 = 3 leaf spring, long lead points set 710 071 07 on a new base plate complete
710 945 06 =
710 945 05 =
711 823 01 =
711 438 01 =
i need help with dimensions and photos of the parts please!
