Lamborghini Gear Shift Knob review







Shift pattern plate found in many early
Lamborghini. Brass, etched, chrome,
painted. Usually sheet metal
screwed right to console.

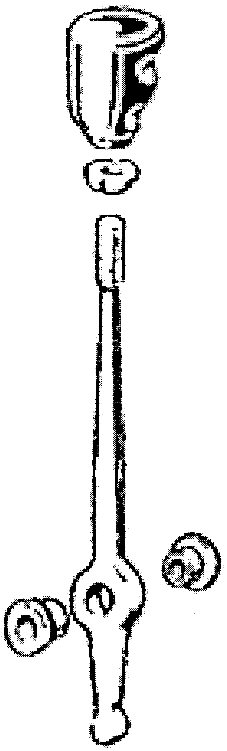

 Gear lever knob thread -
      10mm x 1.5
with 30mm thread length.

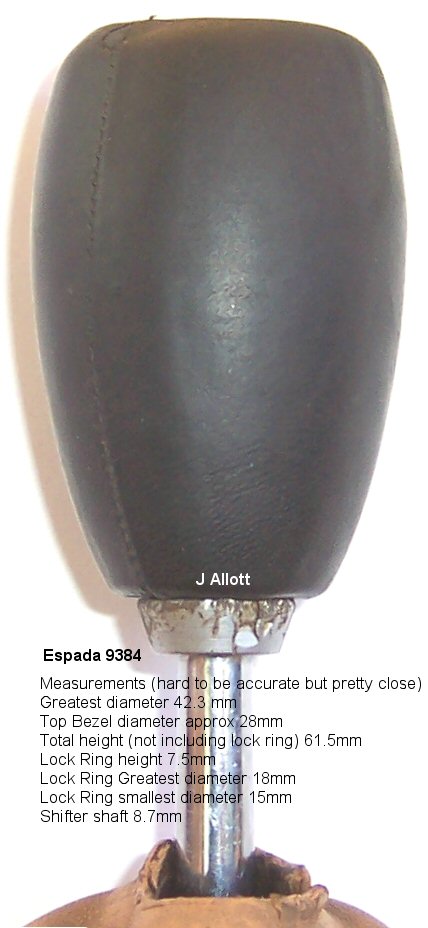

Ring lock nut 2401723
is about 6mm in height.
large dia is 18mm,
small diameter 15mm,
with 10 x 1.5 threads,
chrome plated steel.



i need photos or scans of the actual period knobs please.
ultimately i would like dimensional drawing of each type as well as exact materials of construction for each. type of wood, thickness of leather, stitch details, threaded insert material? zinc, steel, alum? , top insert material- plastic? size? thickness?
Any help on this is greatly appreciated.
year
 model
 Lambo
gear knob
part no
 Lambo
ring nut
part no
Lambo
insert
part no
 Notes
1964-66
 350GT
 TC-02158 TC-01723

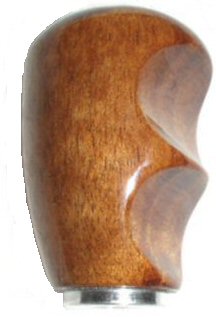

wood w/round top, 2 groove
1965-66
 400GT
 TC-02158 TC-01723
wood w/round top, 2 groove
1966-68
 400 2+2
 TC-02158
 TC-01723
wood w/round top, 2 groove
1967-68
 Miura P400
 TC-02158 TC-01723
wood w/round top, 2 groove
1968
 Miura P400
 TC-02158
 TC-01723
wood w/Lambo logo, 2 groove
1968-71
 Miura P400S
 TC-02158 TC-01723
leather w/Lambo logo, 2 groove
1971-73
 Miura P400SV
 TC-02158 TC-01723

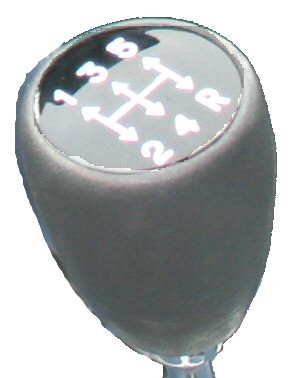

leather w/shift pattern, 2 groove
1968-69
 Islero
 TC-02158 TC-01723
wood w/round top, 2 groove
1969
 Islero S
 TC-02158 TC-01723
wood w/round top, 2 groove
1968-69
 Espada S1
 2402158 2401723
wood w/round top, 2 groove
1969-73
 Espada S2
 2402158 2401723
leather w/Lambo logo, 2 groove
1970-73
 Jarama
 2402158
 2401723
wood w/round top, 2 groove
1973-76
 Jarama S
 2402158
 2401723
leather w/Lambo logo, 2 groove






1972-78
Espada S3
2410134
2401723

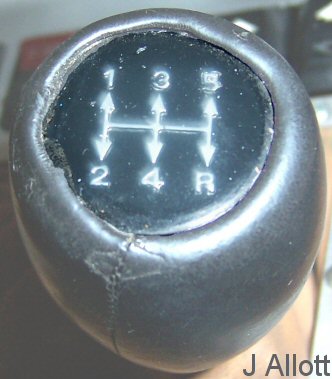

leather w/shift pattern
1972-76
 Urraco P250
 2410426
2410531
 fluted, shift pattern, lift ring

Urraco P250S
 2410426
2410531
 fluted, shift pattern, lift ring
1975-79
 Urraco P300
 2410733
 2410653
fluted, shift pattern
1974-78
 Countach LP400
 2410654
 2410653
 2410655
 leather, 2 seam w.shift pattern
1978-82
 Countach LP400S
 2410654
 2410653
 2410655
 leather, 2 seam w/shift pattern
1982-85
 Countach LP500S
 2410654
 2410653
 2410655
 leather, 2 seam w/shift pattern
1985-88
 Countach LP500 QV
 2410654
 2410653
 2410655
 leather, 2 seam w/shift pattern






1982-88
 Jalpa 350
 2410654
 2410653
 2410655
 leather, 2 seam







notes:
1) It appears that 2007 the Lamborghini factory number for 2402158 knob is now 2405011. Since this could be at least 5 different knobs, it is not clear what this number means.
2) Urraco P250 and 250S had an earlier part number for the combination of knob and insert together of  2409346.
